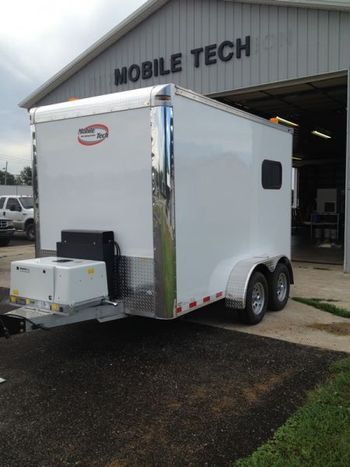

8x12 Fiber Trailer

Splicing trailers protect the splicing operation from weather and debris, while providing the technicians with convenience and comfort in the field. Our custom design team will work with you to create the perfect trailer for your needs. If you are looking for a standard 8x12 tandem axle splicing trailer you will love this floorplan. The 8x12 splicing trailer has the same interior setup as the 7x12 fiber splicing trailer. The additional space creates a comfortable interior work environment and also provides exterior storage compartments that make accessing equipment and tools trouble-free at the jobsite the trailer. More workspace and more storage make this the perfect trailer for larger crews or longer projects. Keep in mind if you prefer your own custom design and layout our splicing trailers are custom built by the industries best trailer manufacturer. This trailer can be ordered configured to meet your splicing setup requirements and as always Mobile Tech Trailers offers any custom trailer with a variety of different options. Each trailer is built from the ground up to fit your needs.

Standard Features

Chassis:

  • Aluminum Frame
  • Torsion Axles
  • Electric Brakes-All Axles
  • Breakaway Battery Kit
  • ST205/75R15 w/ Steel Wheels
  • 7-Way Trailer Plug
  • 2 5/16” Ball Coupler
  • Safety Chains & Hooks
  • 5000# Jack

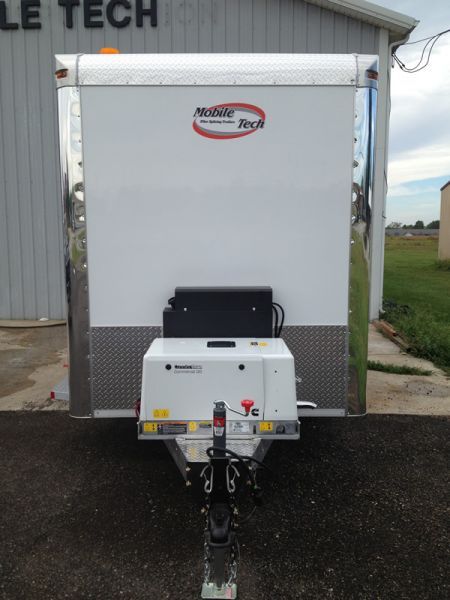

Electrical:

  • 5.5w Onan Commercial Gas Gen
  • Remote Gen Start/Hour Meter
  • 20 Gallon Fuel Tank w/ Gauge
  • Automatic Transfer Switch
  • 50 Amp Load Center
  • 12V Cut-Off Switch
  • 30’ Motorbase Shore Cord

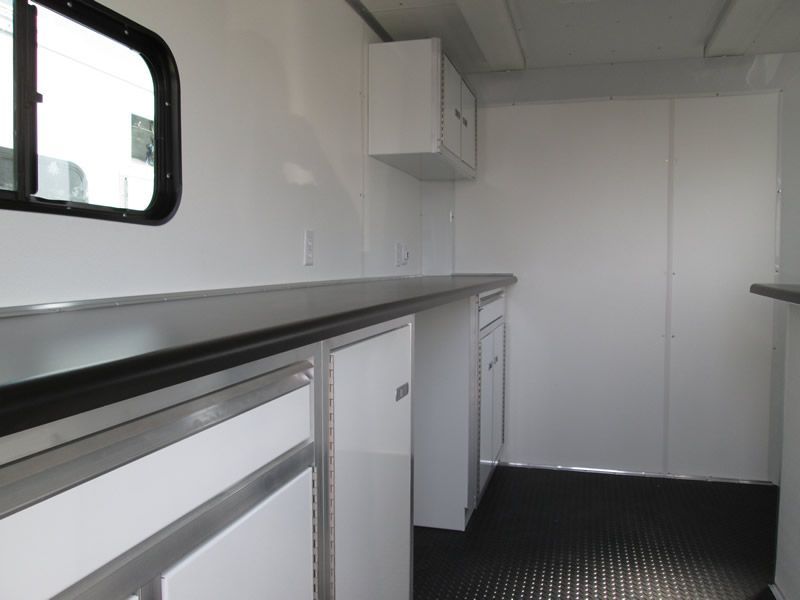

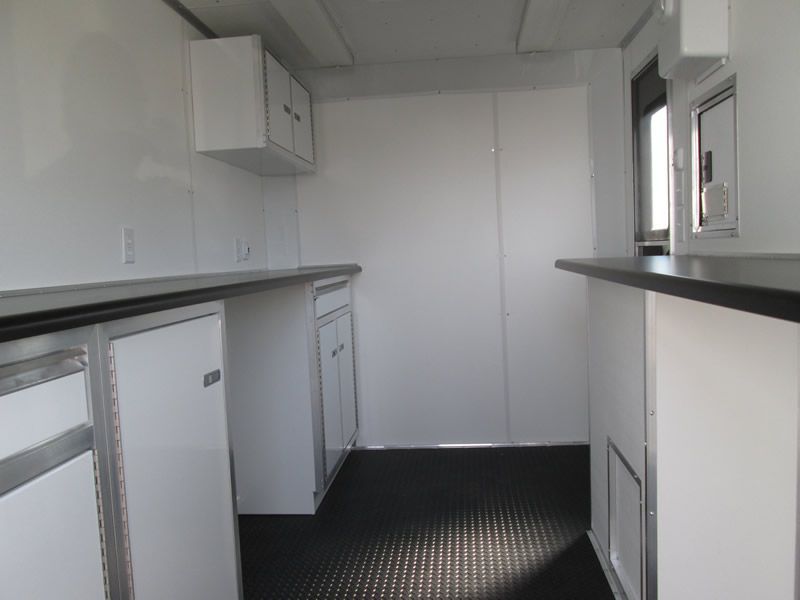

Interior:

  • White Vinyl Walls & Ceiling
  • Tuff Ply Rubber Diamond Plate Flooring
  • Road Side Laminate Cabinets
  • Curb Side Laminate Cabinets
  • (2) Cable Access Doors w/ Brushes
  • (2) Cable Clamps
  • (2) 30” x 22” Tinted Slider Windows
  • 13,500 BTU Air Conditioner
  • Electric Wall Heater
  • 12V Power Roof Vent
  • Carbon Monoxide Detector
  • (2) 12V LED Dome Lights
  • (4) 24” 2000 Lumen LED Interior Lights
  • (5) 120V Interior Outlets
  • (1) 12V Interior Outlet
  • First Aid Kit
  • Eye Wash Station
  • Fire Extinguisher

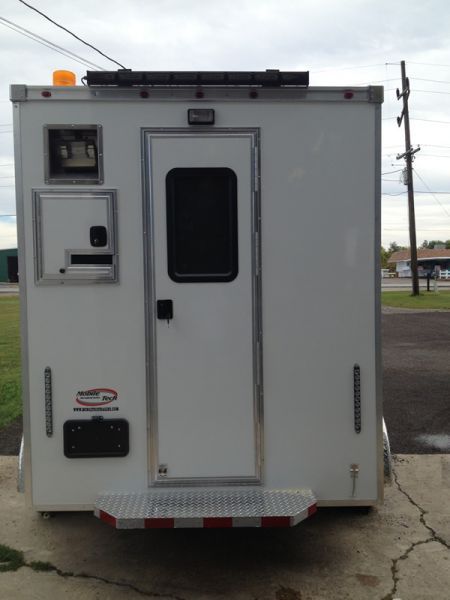

Exterior:

  • White FRP Sidewalls
  • One Piece Aluminum Roof
  • Front Vertical Corners
  • LED Clearance Lights
  • LED Slimline Tail Lights
  • 24” ATP Front Stoneguard
  • 12” ATP Side Trim
  • (2) 24” Entrance Doors
  • Aluminum Slideout Step
  • Rear Step Bumper
  • 34” x 26” Storage Door
  • Front & Rear Stabilizer Jacks
  • Exterior 120V GFI Outlet
  • Lighted Directional Arrow Board
  • (2)Roof Mounted LED Strobe Light
  • (2) LED Flood Lights
  • (2) LED Porch Lights
